Permaswage provides proprietary and standard components, tooling, and training to all major aerospace companies.

Permaswage Catalogs
Permaswage Products

The Global Technology Leader in the Fluid Fitting Industry

Permaswage has designed and manufactured reliable products for more than five decades for world aircraft manufacturers.

Standard Fittings

Available in aluminum, Steel, Stainless Steel, Titanium, and brass.

Permanents

Permaswage System, Permalite, AS5958 & AS6116 series, Highly Resistive Union, and DMC's Miniature End Fitting Series.

Swivels

Solutions for bending and movement of hoses and tubing.

Hoes Fittings & Assemblies

High, medium, and low pressure assemblies.

Custom Fittings

Permaswage has the resources to provide solutions for all types of applications.

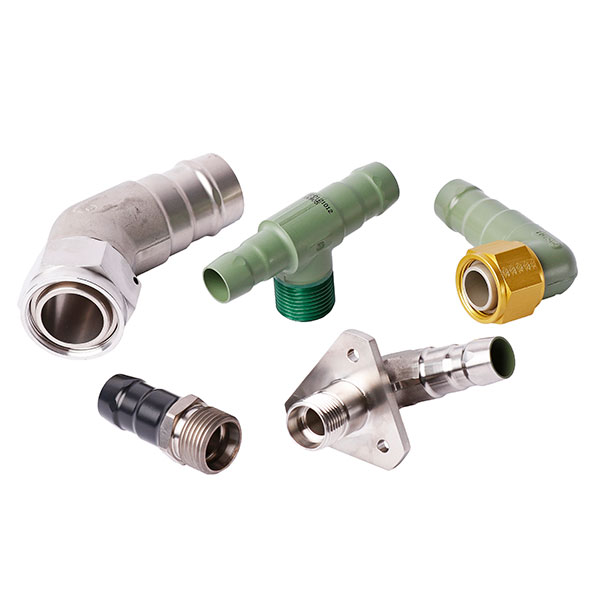

Permaswage System
Swivels

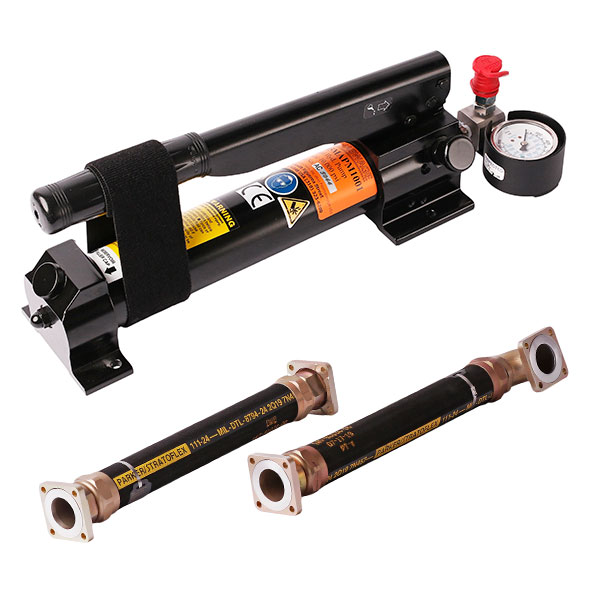

Tools
Standard Fittings

Permaswage Core Product Line

Browse the Permaswage core product line below. For application installation requirements and product line information, refer to Permaswage Standard Operating Procedure (SOP) manuals.

ProductsMax. Line PressureFitting MaterialsTube MaterialsSOP
Permaswage System 4,000 psi AL, CRES, Ti AL, CRES, Ti SOP-01-10
Permaswage 3,000 psi AL, CRES, Ti AL, CRES, Ti SOP6-01-05
Permalite System 5,000 psi AL, CRES, Ti AL, CRES, Ti SOP604-008
AS Fitting System 5,080 psi Ti AL, CRES, Ti SOP604-028
AS Aluminum   AL AL SOP604-033
DME/PME Series 5,000 psi CRES AL, CRES, Ti SOP604-013
HRU 5,080 psi AL, CRES, Ti AL, CRES, Ti SOP6-01-05
AN/MS/AS/NSA Fittings 3,000 psi AL, CRES, Ti
Swivels 5,000 psi AL, CRES, Ti

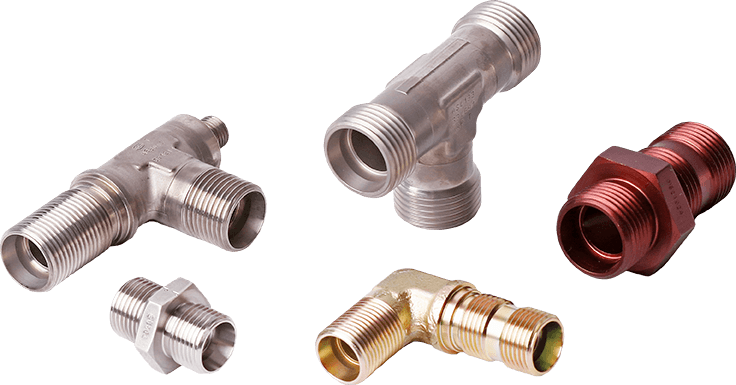

Standard Fittings

Permaswage has more than 50 years of experience in manufacturing separable fittings to industry end standards and customer standards to support all programs.

We offer full capability manufacturing facility in making superior hydraulic fluid fittings by implementing a total quality management to ensure a precision crafted made to design every time.

Aluminum / Steel / Stainless Steel / Titanium / Brass

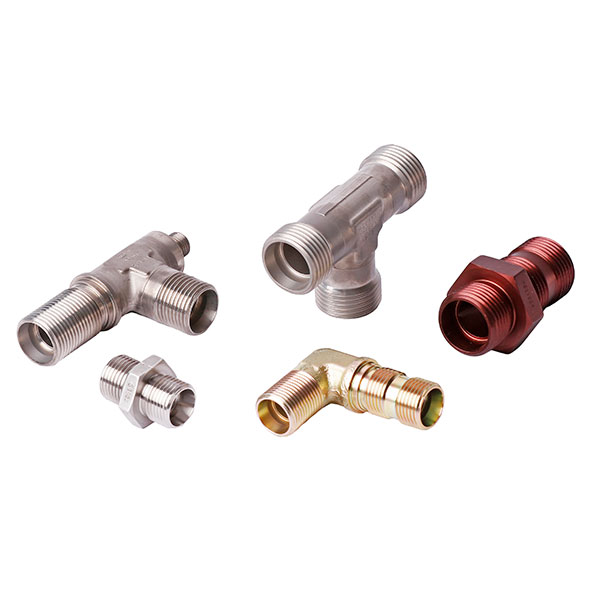

Standard Fittings

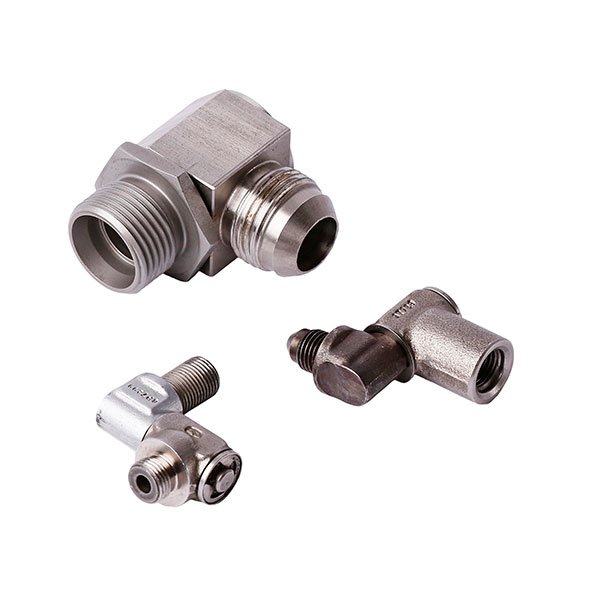

Swivels

Swivel components can reduce the bending and movement of hoses and tubing, eliminate internal stresses and dampen vibration.

Hydraulic swivels are fluid pivot connectors. They permit relative movement and rotation and provide a sealed flow path for hydraulic media. Swivels are connected to tubes by either permanent or separable connections. They are available in various tube sizes, aluminum and stainless steel, and titanium in straight, elbow & U shaped swivel.

  •  Available port connections include flared, flareless, and lipseal.
  •  Two-piece seal design for low rotary torque and long seal life.
  •  Can be used with permanently swaged hose-to-tube fittings.
  •  Fittings designed to specific customer requirements.

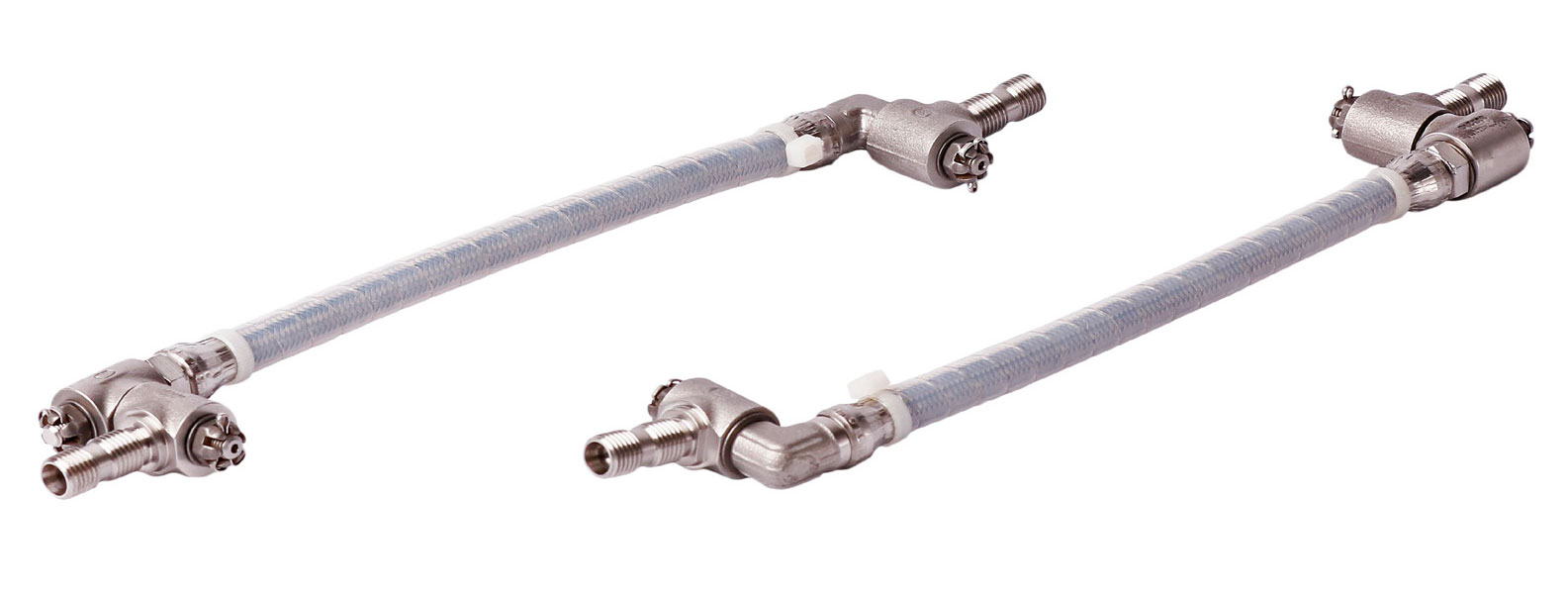

Hoes Fittings & Assemblies

HIGH, MEDIUM & LOW PRESSURE ASSEMBLIES

Permaswage® hoses can be used in power plant, air frame, or vacuum systems to carry hydraulic fluids, engine fuels and coolants at temperatures from -65°F to 250°F.

Hosing Specifications

  •  Oil & fuel resistant synthetic compound.
  •  Sizes 04, 05, 06, 08, 10 and 12 are double wire braided. Size 16 is triple wire braided.
  •  Single wire & single cotton braid.
  •  Single cotton braid embedded in bond ing material.
  •  Oil & fuel resistant synthetic impregnated cotton braid.

Fitting Specifications

Fittings are available in any material, size, or shape supplied by Permaswage.
  • Custom options are available.

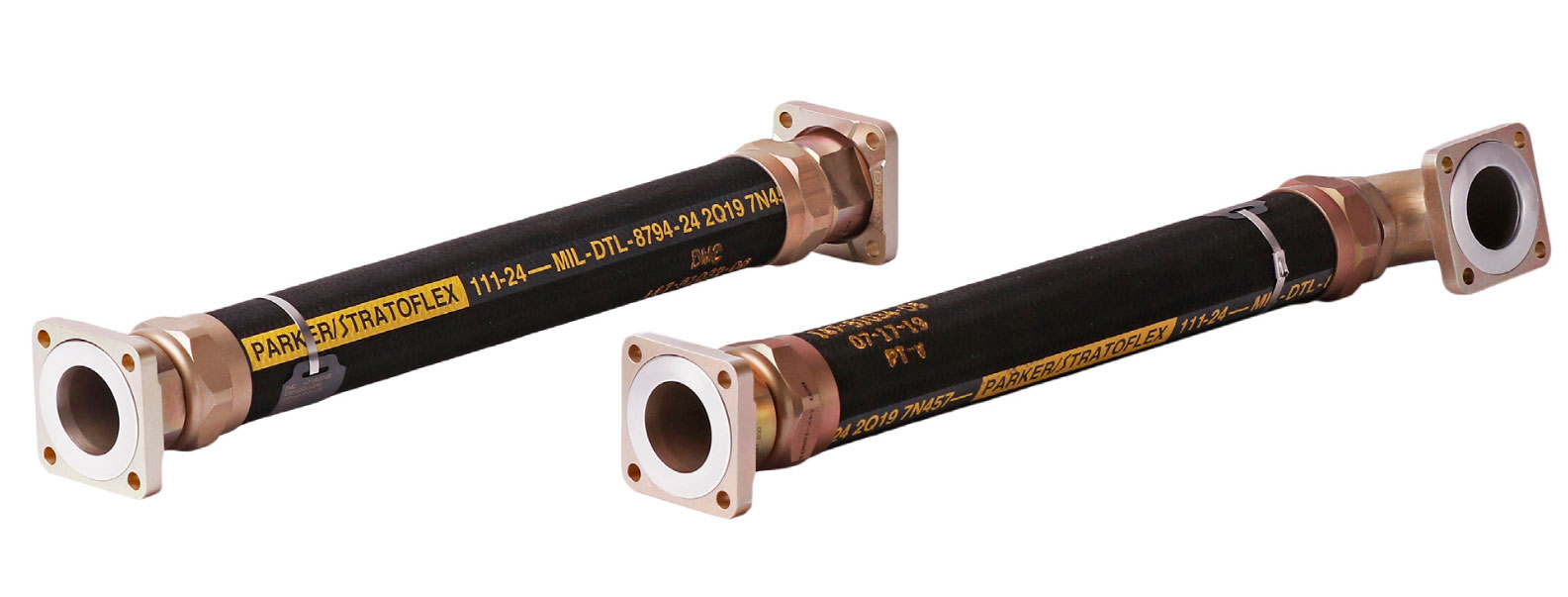

Hosing
Hosing

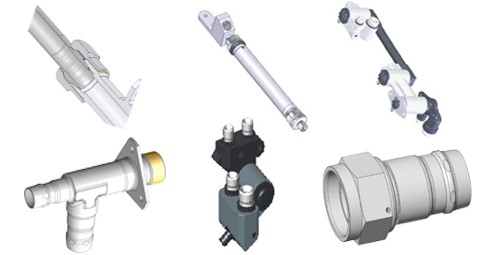

Custom Fittings

Permaswage has the resources to provide solutions for all types of applications.

Contact Permaswage by Requesting a Quote for any configurations, materials, or special dimensions not listed in our catalog.
